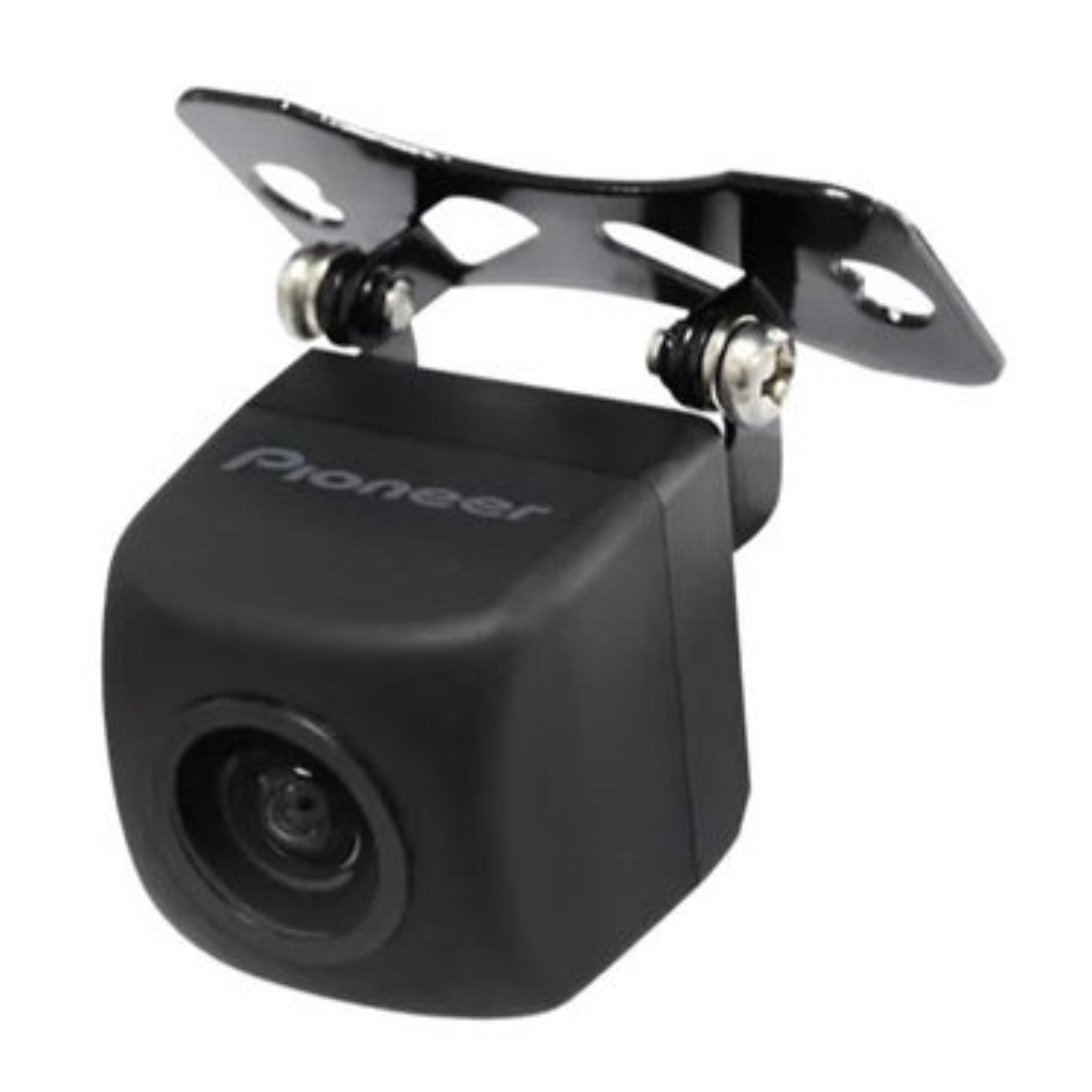

Pioneer ND-BC02 Universal Reverse Camera
Low Prices
Price match guarantee
Guaranteed Fitment.
Always the correct part
In-House Experts.
We know our products
Easy Returns.
Quick & Hassle Free
Description
Rated IP67
1/3'' Color CMOS Sensor
Power source: 12.0 V DC
Max. current consumption: 100 mA or Less
Output video: Mirror image((for rear view confirmation)
Sensor: 1/3-inch colour CMOS sensor
No. of pixels: effective no. of pixels roughly 345 600
Lens: Wide-angle, focal length f = 1.62m, F value 2
Angle of view: Horizontal: approx. 120°,Vertical: approx. 100°
Scanning system: Line by line
Synchronizing system: Internal synchronization
Signal-to-noise ratio: 48 dB or more
Horizontal resolution: Approx. 420 TV lines
Illumination range: Approx. 0.5 lux to 100 000 lux
Image output: NTSC compatible 1 Vp-p (75Ω)
Operation temperature range: -30°C to +70°C
Storage temperature range: -40°C to +85°C
Dimensions (W x H x D): 23.5 mm x 23.5 mm x 24.0 mm
Weight: 168 g
Rear view camera: 1.3 m
RCA / Power supply cable: 7 m / 0.3 m
Features
- •The ND-BC02 is designed to capture vivid images with minimal noise regardless of the operating condition. Rated IP67
- •This camera can withstand water, dirt, and sand
- •It also incorporates a highly efficient color sensor and modern electronics
- •Reducing your power consumption.
